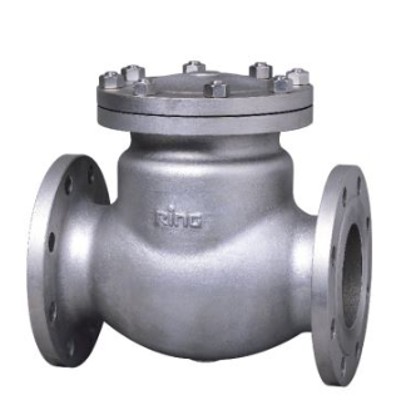

STAINLESS STEEL SWING CHECK VALVE FIG.928
JIS - 10K
FIG.928-不銹鋼横式逆止閱
STAINLESS STEEL SWING CHECK VALVE
Bolted cover, Integral seat, Swing type, Flanged ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | Stainless Steel |
| 閥桿 STEM | EPDM |
| 絞鍊銷 PIN | Stainless Steel |
| 閥盤 DISC | Stainless Steel |
| 彈簧 SPRING | Stainless Steel |
| 停止銷 STOP PIN | Stainless Steel |
| 最高使用壓力MAX.WORKING PRESSURE | 試驗壓力(水壓)HYD. TEST |
|---|---|
| 請參閱溫度/壓力基準表 |
1.本產品均實施固溶化熱處理CNS4000 G3092。
2.閥座可加焊STELLTE(司太合金)耐磨料。
3.閥進、出端距離幫浦出口及彎頭，至少需有5倍管內徑之長度。

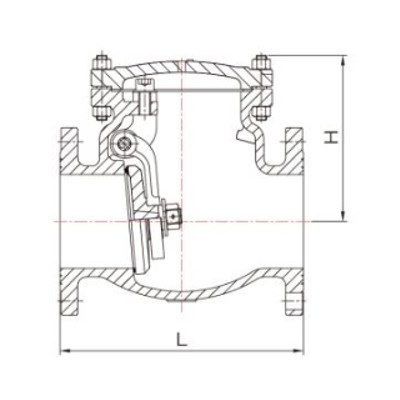

| 尺寸 | 1/2" | 3/4" | 1" | 11/2" | 2" | 21/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 108 | 117 | 127 | 165 | 203 | 216 | 241 | 292 | 330 | 356 | 495 | 622 | 699 |
| H | 57 | 58 | 68 | 80 | 145 | 155 | 170 | 200 | 190 | 230 | 242 | 350 | 380 |
