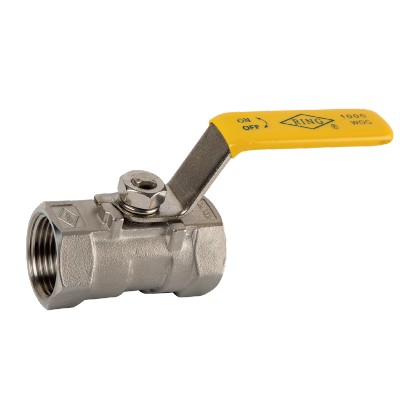

ONE PIECE STAINLESS STEEL BALL VALVE FIG.911
1000型一件式
FIG.911-不銹鋼球塞閥
ONE PIECE STAINLESS STEEL BALL VALVE
Reduce port blowout-proof stem,Reinforced PTFE.Anti-leakage,Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CF8M |
| 閥蓋 BONNET | CF8M |
| 閥桿 STEM | SUS316 |
| 閥球 BALL | CF8M |
| 球座 BALL SEAT | PTFE |
| 把手 HANDLE | SUS304 |
| 最高工作壓力／Max.working pressure | |
|---|---|
| 120˚C 以下水、油、氣 | 1000WOG |
| 120˚C below. water oil gas. | 70 kg f/cm² |
| 飽和蒸汽／Saturated steam | 10.5 kg f/cm² |
| 閥體測試／Body test | 6 kgf/cm² (AIR) |
| 閥座測試／Seat test | 6 kgf/cm² (AIR) |

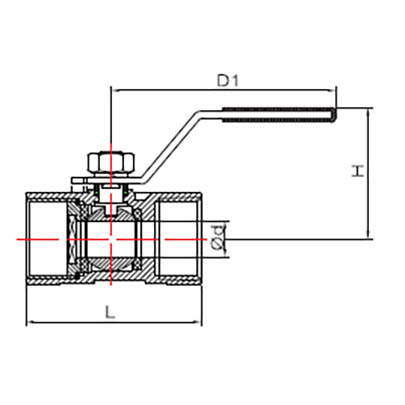

| 尺寸 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L | 40 | 44 | 56.6 | 59.6 | 71 | 77.9 | 82.2 | 99.2 |
| H | 34 | 36 | 40 | 43.5 | 51 | 56 | 65 | 70 |
| D1 | 57.5 | 68 | 84.5 | 84.5 | 105 | 105 | 112 | 112 |
| Ød | 5 | 7 | 9 | 12.5 | 16 | 20 | 24.5 | 32 |
