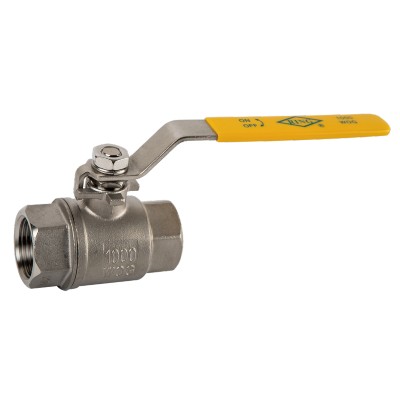

TWO PIECES STAINLESS STEEL BALL VALVE FIG.921
1000型二件式
FIG.921-不銹鋼球塞閥
TWO PIECES STAINLESS STEEL BALL VALVE
Full port blowout-proof stem,Reinforced PTFE.Anti-leakage,Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CF8M |
| 閥蓋 BONNET | CF8M |
| 閥桿 STEM | SUS316 |
| 閥球 BALL | CF8M |
| 球墊 BALL SEAT | PTFE |
| 把手 HANDLE | SUS304 |
| 最高工作壓力／Max.working pressure | |
|---|---|
| 120˚C 以下水、油、氣 | 1000WOG |
| 120˚C below. water oil gas. | 70 kgf/cm² |
| 飽和蒸汽／Saturated steam | 10.5 kgf/cm² |
| 閥體測試／Body test | 6 kgf/cm² (AIR) |
| 閥座測試／Seat test | 6 kgf/cm² (AIR) |

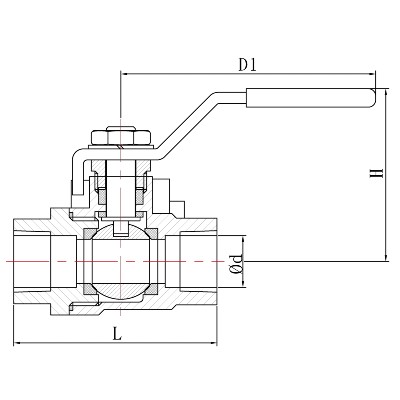

| 尺寸 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| L | 60 | 70 | 82 | 96 | 112 | 126 | 156 | 170 |
| H | 56 | 61 | 66 | 81 | 95 | 100 | 135 | 145 |
| D1 | 98 | 98 | 135 | 135 | 182 | 182 | 243 | 243 |
| Ød | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 80 |
