AIR RELEASE VALVE (LARGE FLOW) FIG.016/ 916
大流量自動釋氣閥
FIG.016/916
AIR RELEASE VALVE(LARGE FLOW)
Air vent with vacuum breaker, Threaded ends.
| 零件 PART | 材質 MATERIAL |
|---|---|
| 016 | |
| 閥體 Body | Cast Iron |
| 閥蓋 Cove | Cast Iron |
| 螺栓 Bolt | Cast Iron |
| 止水環 Sealing | NBR |
| 頂塞 Plug | Stainless Steel |
| 浮球組 Float Ball Set | Stainless Steel |
| 916 | |
| 閥體 Body | Stainless Steel |
| 閥蓋 Cove | Stainless Steel |
| 螺栓 Bolt | Stainless Steel |
| 止水環 Sealing | NBR |
| 頂塞 Plug | Stainless Steel |
| 浮球組 Float Ball Set | Stainless Steel |
| 最高工作壓力／Max.working pressure | |||
|---|---|---|---|
| 80˚C以下水、油、氣 | 閥座測試／Seat test | 工作溫度範圍 | |
| 016 | 12 kg f/cm2 | 21 kg f/cm2(HYD.) | 0˚C~80˚C |
| 916 | 16 kg f/cm2 | 24 kg f/cm2(HYD.) | 0˚C~80˚C |

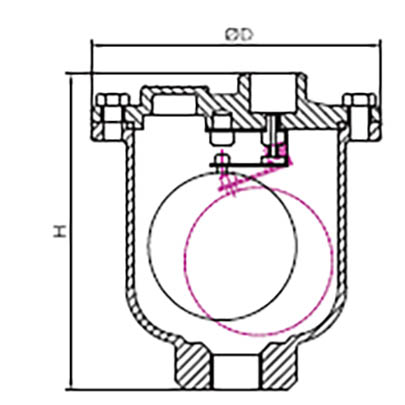

| 尺寸 | 1/2˝ | 3/4˝ | 1" | 1½˝ | 2˝ |
| ØD | 120 | 120 | 120 | 190 | 190 |
| H | 131 | 131 | 131 | 210 | 210 |
