FLOAT CONTROL VALVE FIG.082/ 882/ 982
定水位閥
FIG.082/882/982
FLOAT CONTROL VALVE
Piston type, Flanged ends.
| 零件/材質 | 082(10K) | 882(16K) | 982(10K/16K/20K) |
|---|---|---|---|
| 閥體 Body | Cast Iron | Ductile Iron | Stainless Steel |
| 閥座 Seat | Bronze | Bronze | Stainless Steel |
| 閥座墊片 Seat Ring | NBR | NBR | NBR |
| 活塞閥門 Piston | Bronze | Bronze | Stainless Steel |
| 彈簧 Spring | Stainless Steel | Stainless Steel | Stainless Steel |
| 活塞缸 Piston Cover | Bronze | Bronze | Stainless Steel |
| 導桿 Piston Guide | Bronze | Bronze | Stainless Steel |
| 最高工作壓力／Max.working pressure | ||
|---|---|---|
| 082 | 882 | 982 |
| 30 kg f/ cm2 | 30 kg f/ cm2 | 30 kg f/ cm2 |
| 閥體測試／Body test(HYD.) | ||
| 21 kg f/cm2 | 32 kg f/cm2 | 32 kg f/cm2 |
| 工作溫度範圍／Working temp. range | ||
| 0℃~60℃ | ||
| 工作壓力 | ||
| 需 0.7 kg f/cm² 以上 | ||
1.尺寸標示為10K。
2.需安裝於水塔之上方。
3.裝置位置注意子閥管路、排氣及於浮球開關前加裝止水閥。

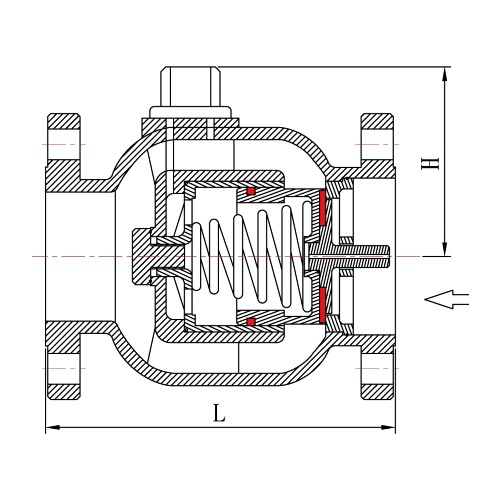

| 尺寸 | 2" | 2½" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| L | 190 | 212 | 225 | 250 | 284 | 310 | 420 | 470 | 535 |
| H | 100 | 105 | 120 | 130 | 150 | 180 | 205 | 250 | 280 |
