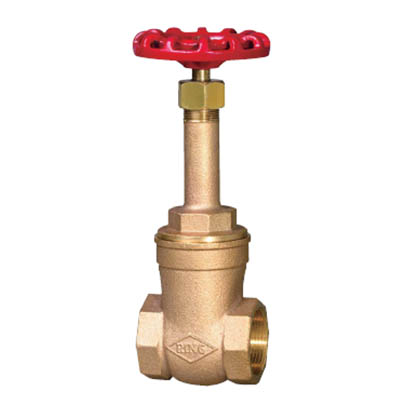

BRONZE GATE VALVE FIG.408
150S/300W.0.G
FIG.408-砲金銅昇桿式閘閥
BRONZE GATE VALVE Rising stem,Screwed bonnet,Solid
wedge disc,Threaded ends,Conform to CNS 11089 B2764 & MSS SP-80
| 零件 PART | 材質 MATERIAL |
|---|---|
| 閥體 BODY | CAST BRONZE |
| 閥蓋 BONNET | CAST BRONZE |
| 閥桿 STEM | DZR#(抗脫鋅材質) |
| 閥盤 DISC | CAST BRONZE |
| 迫緊螺帽 P/N | BRASS |
| 迫緊 PACKING | PTFE |
| 手輪 HANDWHEEL | CAST IRON |
| 最高使用壓力 | 試驗壓力(水壓) | |
|---|---|---|
| 120°C以下水、油、瓦斯 | 閥體 | 閥座 |
| 16.9kg f/cm2 | 32.0kg f/cm2 | 22.0kg f/cm2 |

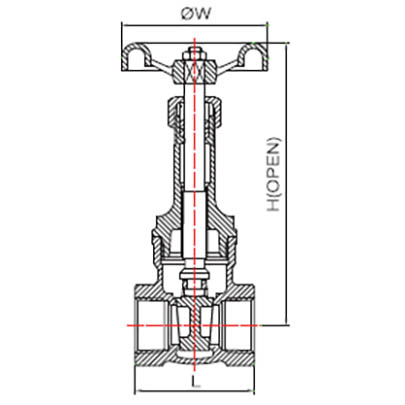

| 尺寸 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 |
| L | 54 | 57 | 66.5 | 73 | 79.5 | 89 | 110 | 119 |
| H | 126 | 157 | 190 | 223 | 262 | 308 | 380 | 440 |
| øW | 62 | 70 | 70 | 85 | 95 | 105 | 120 | 130 |
